Dimension
front view
side view
|
| Le
caratteristiche riportate possono subire variazioni senza
preavviso. |
|

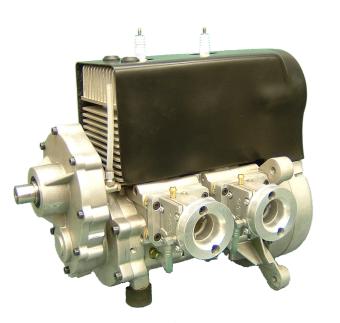

| type of engine |
two stroke, two cylinders |
| displacement |
196,34 cc |
| stroke |
50 mm |
| bore |
50 mm |
| cooling |
forced air |
| ignition |
cdi system charging battery 12v |
| power |
40 hp at 9000 rpm |
| max rpm |
9500 rpm |
| muffler |
different types of exhaust |
| weight |
15,8 kg |
| clutch |
--------------- |
| starter |
recoil and electric start |
| reduction gear |
ratio 3,5 : 1 |
| carburetor |
two walbro |
| cylinder |
al-nicasil |
| compression |
10,6 : 1 |
|
